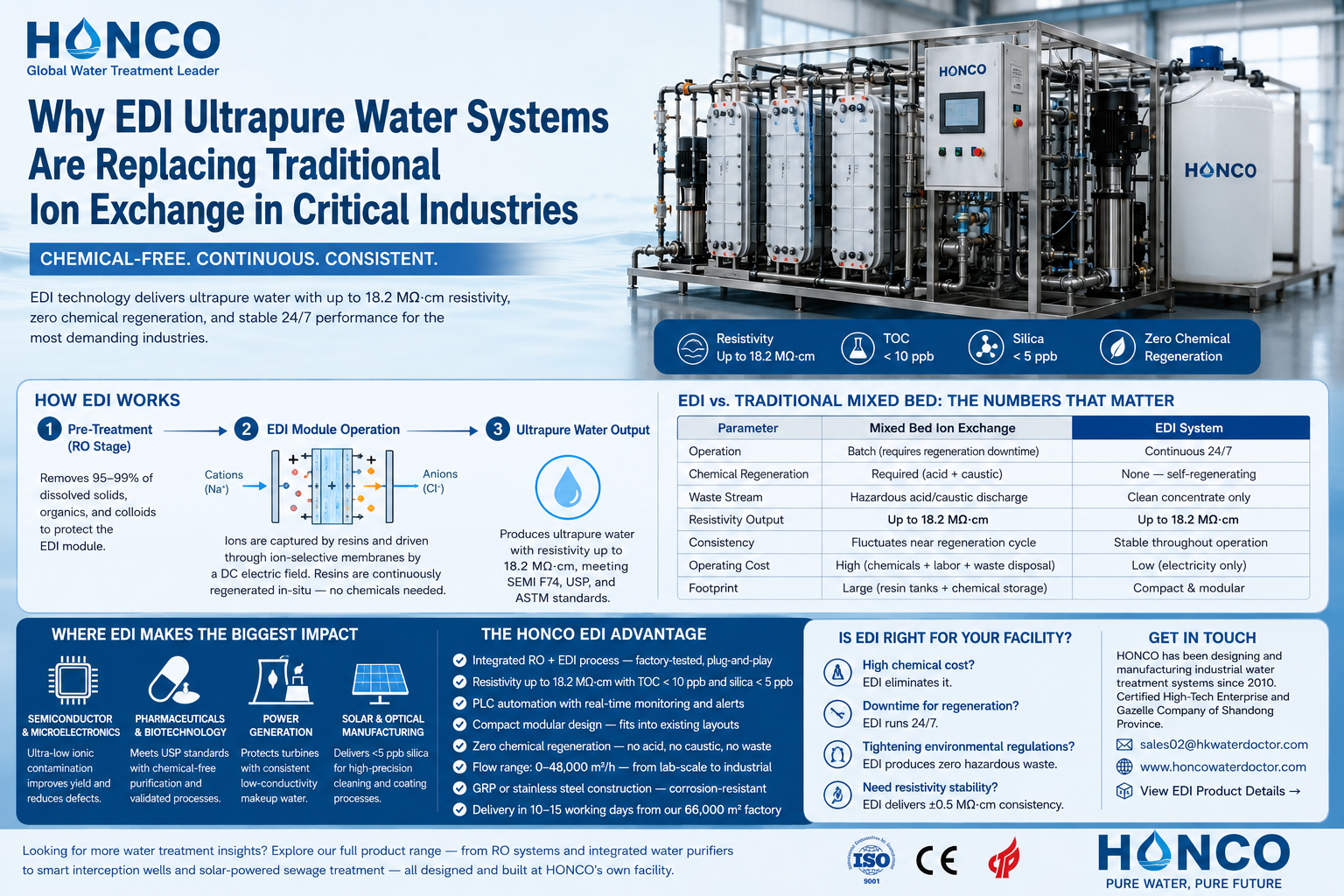

Why EDI Ultrapure Water Systems Are Replacing Traditional Ion Exchange in Critical Industries

When a single ionic contaminant can ruin an entire batch of semiconductors, shut down a power plant turbine, or compromise a pharmaceutical formulation — the purity of your process water is not a detail. It's the foundation.

For decades, mixed bed ion exchange was the standard for producing ultrapure water. But as industries push toward zero-chemical operations, continuous production, and tighter purity specs, a different technology has taken the lead: Electrodeionization (EDI).

In this article, we break down how EDI works, where it outperforms traditional systems, and why more engineers and procurement teams are making the switch — especially in semiconductor, pharmaceutical, and power generation facilities.

What Is EDI and How Does It Work?

EDI (Electrodeionization) is a continuous water purification technology that combines ion exchange resins with ion-selective membranes and a DC electric field to remove dissolved ions from water — without the need for chemical regeneration.

Here's the process in three stages:

1. Pre-Treatment (RO Stage)

Feedwater first passes through a reverse osmosis (RO) system, which removes 95–99% of dissolved solids, organics, and colloids. This step is critical — it protects the EDI module from fouling and ensures stable long-term performance.

2. EDI Module Operation

The RO-permeate enters the EDI stack, where:

• Cation and anion exchange resins capture dissolved ions (Na⁺, Cl⁻, SiO₂, etc.)

• A DC electric field drives captured ions through ion-selective membranes into concentrate compartments, where they're flushed away

• Water splitting at high potentials generates H⁺ and OH⁻ ions, which continuously regenerate the resins in-situ — eliminating the need for acid or caustic soda

3. Ultrapure Water Output

Water exits the EDI module with resistivity up to 18.2 MΩ·cm (at 25°C) — the theoretical purity limit for water. TOC, silica, and bacterial counts are reduced to trace levels that meet SEMI F74, USP, and ASTM standards.

EDI vs. Traditional Mixed Bed: The Numbers That Matter

The verdict: For flow rates above 40 GPM, EDI delivers equivalent purity with 30–50% lower operating costs and zero chemical handling. For smaller systems, mixed bed may still be viable — but the industry trend is clear.

According to recent market analysis, over 44% of manufacturers are now shifting toward chemical-free deionization, while 36% are adopting hybrid RO-EDI configurations. The global EDI ultrapure water market is projected to grow from USD 1.27 billion in 2026 to USD 2.12 billion by 2035. (Source)

Where EDI Makes the Biggest Impact

Semiconductor & Microelectronics

In chip fabrication, ionic contamination at the parts-per-trillion level can cause microdefects that destroy yield. EDI systems — combined with multi-stage RO and final polishing — deliver the rinse water consistency that fabs demand. Resistivity stability directly impacts defect rates.

Pharmaceuticals & Biotechnology

Water for Injection (WFI) and purified water systems require validated, chemical-free purification paths. EDI eliminates the regulatory burden of handling and disposing of regeneration chemicals, while delivering USP-grade water quality for upstream processes and buffer preparation.

Power Generation

High-pressure boiler feedwater must resist scaling and corrosion. EDI provides consistent low-conductivity makeup water without the chemical softening cycles that introduce variability — protecting turbines and extending maintenance intervals.

Solar & Optical Manufacturing

Photovoltaic cell texturing, LCD panel cleaning, and optical coating processes all depend on ultrapure water with silica below 5 ppb. EDI's stable silica removal performance makes it the preferred technology for these precision applications.

The HONCO EDI Advantage

At HONCO, our EDI Industrial Ultrapure Water Equipment is built around three priorities: purity reliability, operational simplicity, and total cost of ownership.

Key features:

• Integrated RO + EDI process — factory-tested, plug-and-play configuration

• Resistivity up to 18.2 MΩ·cm with TOC < 10 ppb and silica < 5 ppb

• PLC automation with real-time monitoring — conductivity, flow, pressure, and system status at a glance

• Compact modular design — fits into existing plant layouts without major renovation

• Zero chemical regeneration — no acid, no caustic, no hazardous waste

• Flow range: 0–48,000 m³/h — from lab-scale to full industrial capacity

• GRP or stainless steel construction — corrosion-resistant for long service life

• Delivery in 10–15 working days from our 66,000 m² factory in Weifang, China

Whether you're upgrading from mixed bed ion exchange or building a new ultrapure water system from scratch, HONCO's engineering team can configure an EDI solution tailored to your feedwater conditions, purity targets, and production capacity.

Is EDI Right for Your Facility?

Ask yourself:

1. Are you spending more than 15% of your water treatment budget on regeneration chemicals? → EDI eliminates this cost entirely.

2. Does your current system require downtime for resin regeneration? → EDI runs continuously, 24/7.

3. Are you facing tightening environmental regulations on chemical discharge? → EDI produces zero hazardous waste.

4. Does your process require resistivity stability within ±0.5 MΩ·cm? → EDI delivers consistent output without the decay cycle of mixed beds.

If you answered yes to any of these, it's time to evaluate an EDI system.

Get in Touch

HONCO has been designing and manufacturing industrial water treatment systems since 2010. As a certified High-Tech Enterprise and Gazelle Company of Shandong Province, we deliver factory-direct equipment with full technical support — from water analysis to commissioning.
