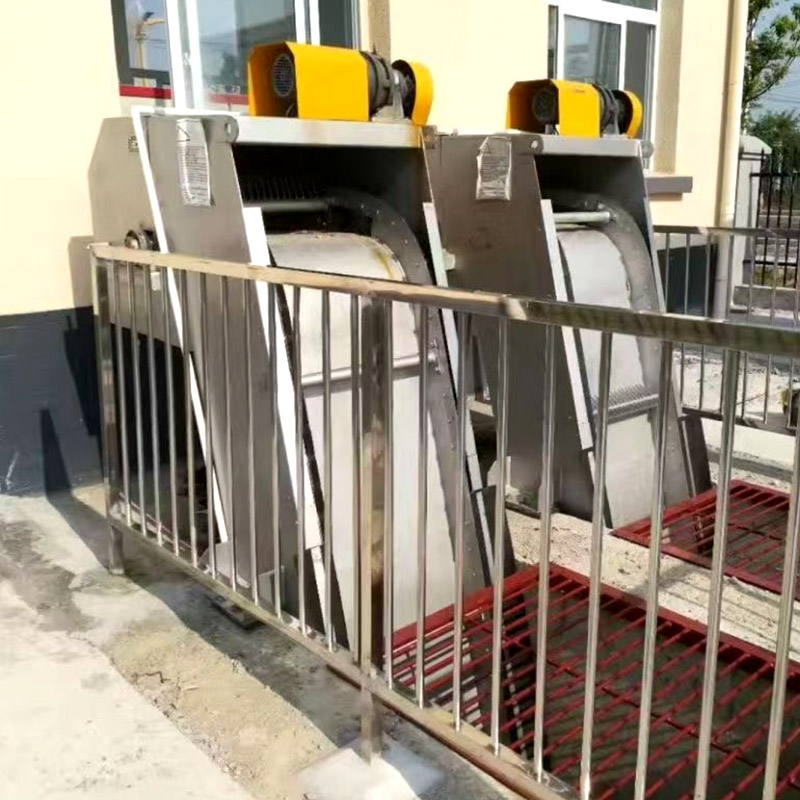

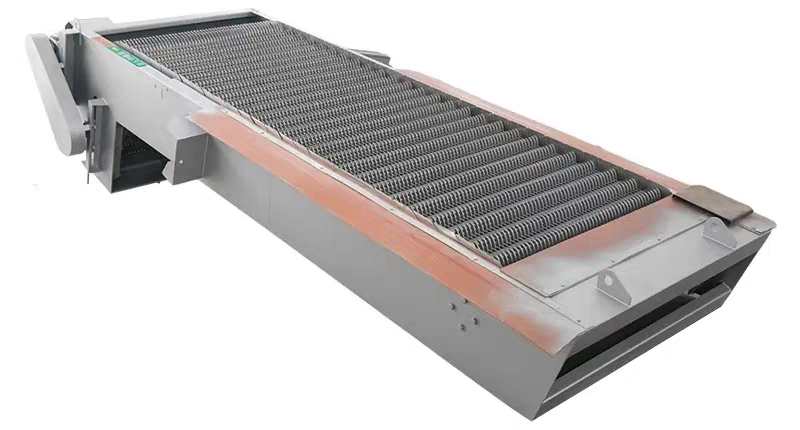

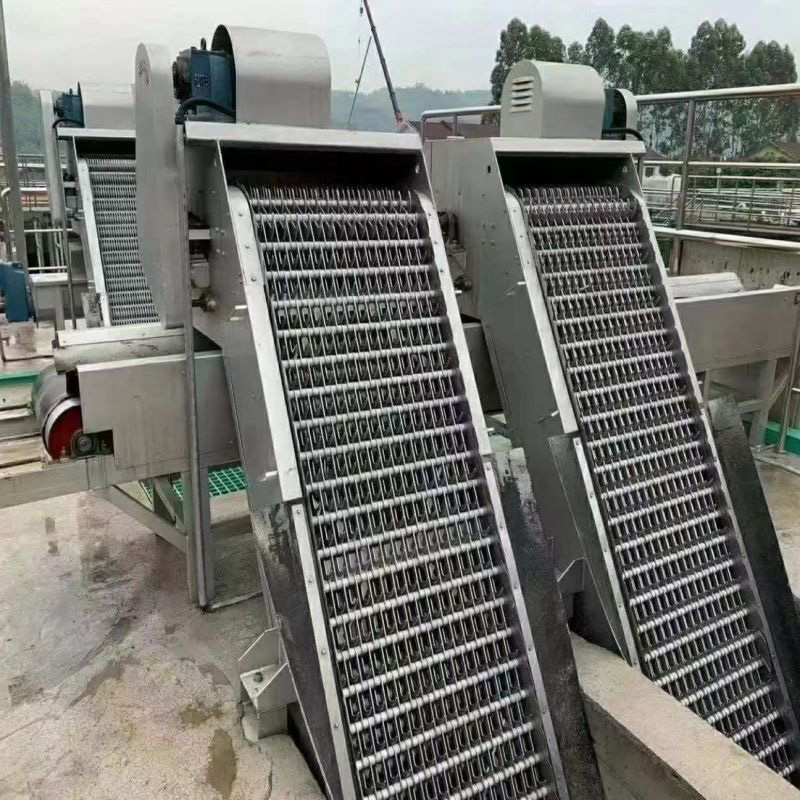

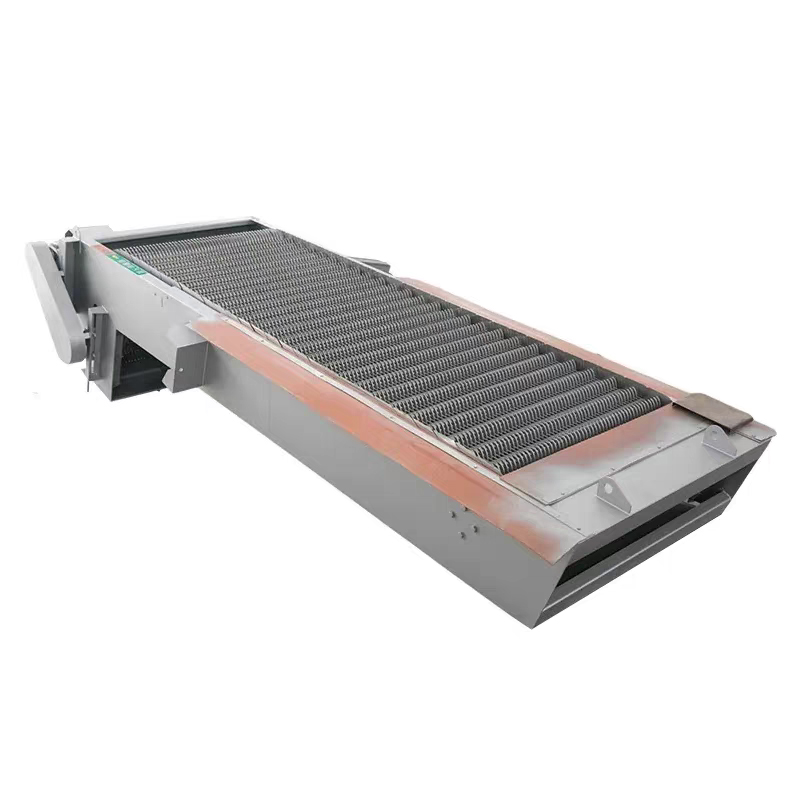

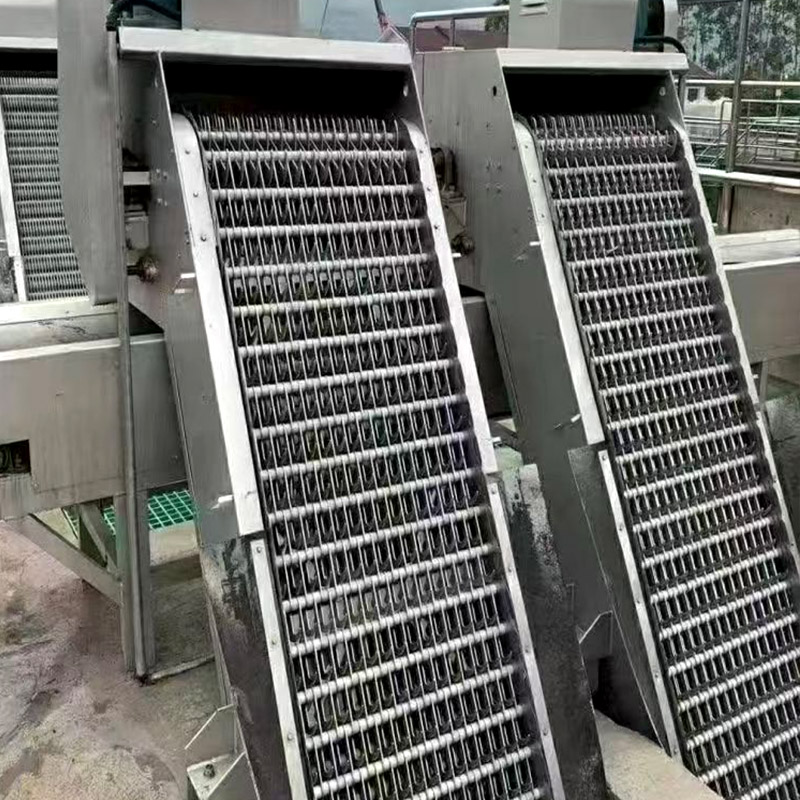

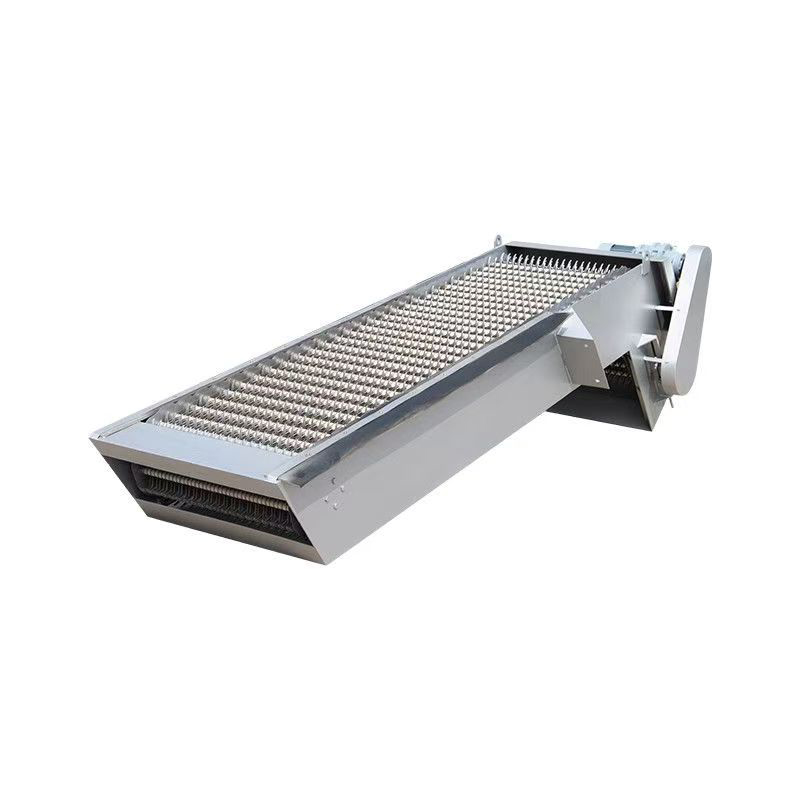

Introduction to Rotary Mechanical Grille Equipment
In the field of wastewater treatment, rotary mechanical grille equipment, as an important pretreatment device, plays a key role. It can efficiently intercept and remove solid impurities in sewage, providing strong guarantee for subsequent wastewater treatment processes.
Working Principle
The rotary mechanical grille equipment drives the rake tooth chain through a motor, making it perform a rotary motion in the sewage channel. As the rake tooth chain rotates, solid substances in the sewage are intercepted by the rake teeth, conveyed to the top along with the upward movement of the rake tooth chain, and finally discharged through the unloading device. In this process, the self-cleaning design of the rake tooth chain ensures that it automatically clears debris during operation, guaranteeing the continuous and stable operation of the equipment.
Structural Characteristics
Efficient Transmission System: Equipped with high-quality motors and reducers, the power transmission is stable, ensuring the uniform operation of the rake tooth chain and achieving efficient solid-liquid separation.

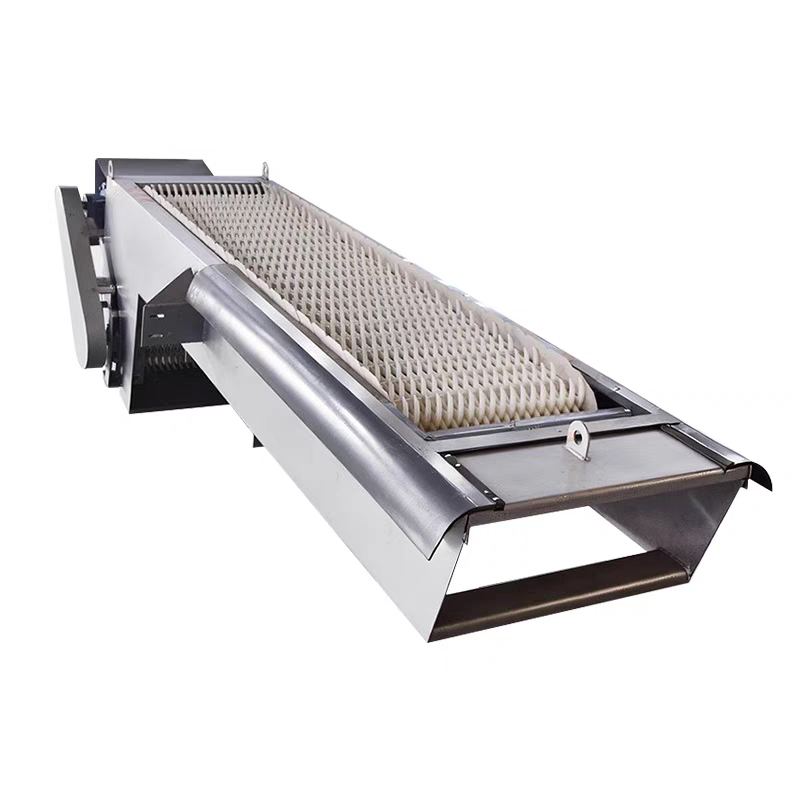

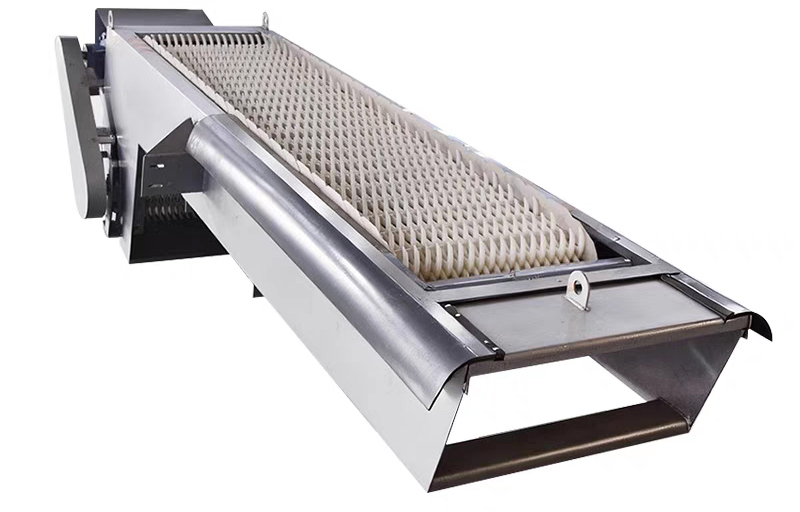

Durable Rake Tooth Chain: The rake teeth are made of corrosion-resistant and high-strength materials such as stainless steel or special engineering plastics, which can not only effectively intercept debris of various shapes and sizes but also have a long service life.
Intelligent Electrical Control System: It enables automatic control of the equipment, including functions such as remote operation, fault alarm, and automatic start-stop, improving the reliability of equipment operation and management efficiency.
Specification Parameters
Equipment Specifications: Divided into multiple specifications according to the machine width dimension, and suitable models can be selected according to actual needs. When the machine width exceeds 1800mm, a parallel machine can be manufactured to meet the processing requirements of larger flow rates.
Rake Tooth Grid Gap: Various grid gap specifications such as 1mm, 3mm, 5mm, 10mm, 20mm, 30mm, 40mm, and 50mm are provided. Users can flexibly choose according to the size and nature of impurities in the sewage.
Equipment Length: The standard trench depth is 1535mm, which can be arbitrarily extended according to user needs and actual usage conditions. Special specifications can also be custom-designed according to customer requirements.
Motor Power: Depending on different equipment specifications, the motor power ranges from 0.75kW to 2.2kW, ensuring that the equipment can operate efficiently under different working conditions.
